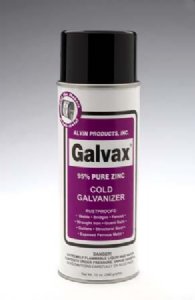

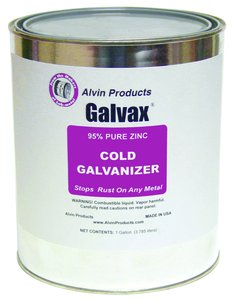

Alvin Products offers Cold Galvanizing paint in aerosol cans, quarts and gallons.
• Maximum content in dry film
• Easy brush or spray application
• Simple handling-single package epoxy
system
• No pot life limitation
• Easy mixing-no hard settling of pigment
• Excellent wetting and penetration properties
• Flexible films with excellent adhesion
• Air dries quickly-set to touch in one hour
• Up to 5 mils dry film thickness per coat
• Can be applied over a wider range of temperatures and
relative humidities than two-component epoxies
PHYSICAL CHARACTERISTICS
Color…
Finish…
Operating Temperature Range…
Surface temp. during application…
Weight per gallon…
% solids by volume…
Coverage per gallon (theoretical*)…
Operating temperature range…
Surface temperature at time of application…
Dry film thickness per coat…
Wet film thickness per coat…
Flash Point (Pensky-Martens)…
Drying time at 70°F…
Shelf Life…
Salt fog exposure (5% @ 100 oF)…
Ultraviolet light…
Relative humidity res. (100% @ 100 oF…
Water immersion (@75 oF)…
Weather resistance…
Combustibility…
Safety equipment required…
Metallic Gray
Flat
-40oF – 180oF
50 oF minimum
24 lbs.
50
800 sq. ft. / mil
-40°F to +180°F (dry)
50°F minimum
2.5-3 mils
5-6 mils
101°F minimum
Set to touch 1 hour
Recoat time 12 hours
1 year
500 hours minimum
Unaffected
500 hours minimum
500 hours minimum
Excellent – no loss of protection after prolonged exposure
Flammable during application. Dried film not combustible.
See MSDS. Take precautions exercised for any flammable paint.
*Note: actual coverage rate will vary depending upon material losses during mixing and application, and upon type and condition of
surface to be coated. Allowance must be made for losses when estimating material requirements.
Galvax zinc-rich coating protects metal
zinc-rich coating protects metal
surfaces with a film of sacrificial zinc in a
manner similar to hot dip galvanizing. It is a
zinc-rich coating based on an epoxy-ester resin.
The dried film contains 93% zinc by weight.
Galvax protects steel surfaces subjected to a
wide variety of corrosive influences, and is
particularly useful for recoating or spot-priming
weathered or damaged galvanized surfaces. It
has excellent recoating properties.
USES:
• Electrical transmission towers and
related structures
• Structural steel: bridges, buildings,
offshore rigs
• Chemical process piping and equipment
• Pulp and paper equipment
• Oil and gas production, processing and
distribution equipment
Galvax
Alvin Products, division of Dampney Co., Inc., Everett, Mass.
email sales@AlvinProducts.com • website www.AlvinProducts.com
FROM THE MAKERS OF LAB-METAL
